WIRING INFORMATION

Trailer Wiring Tips

Brought to you by etrailer.com for all your trailer wiring needs.

Trailers are required to have at least running lights, turn signals and brake lights. To provide the power and a hook-up for these, the tow vehicle's wires are tapped into. This is accomplished through either a T-One connector (if available for your vehicle) or through hardwiring. The T-One Connector is pre-wired to a 4-pole flat that can adapt to a 6 or 7 way round connector. Hardwiring requires the installer to locate the proper wires in the tow vehicle. To help in this task consult the owner's manual or the chart at the bottom of the page.

Connectors

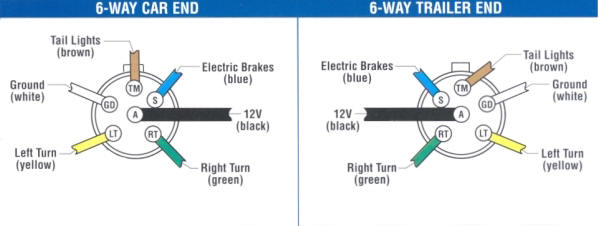

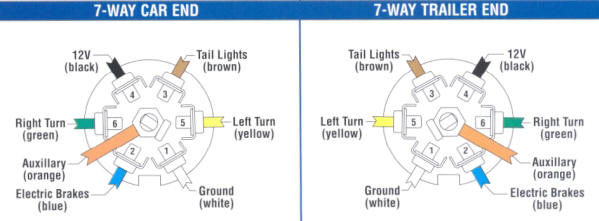

Various connectors are available from four to seven pins to allow for the transfer of power for the lighting as well as auxiliary functions such as electric trailer brake control, backup lights, etc. Choose a connector that has the required number of pins for the functions required. Also, mount the connector on the vehicle. Not only will it display a clean look, but a mount is helpful in avoiding the potential problems associated with leaving a connector dangling.
